Intelligent Dimmer Switch Z-Wave + Fibaro Walli Dimmer
FIBARO Walli Dimmer is a smart dimmer with integrated light switch. It works with lighting sources available in the market, such as: LEDs, compact lamps, traditional bulbs and halogen lamps. The device is equipped with automatic calibration and measurement functions for active power and energy.
Unique design and exceptional technology
The complete series of FIBARO smart switches and connectors based on Z-Wave technology will provide your home with versatile intelligence. The look of the series is inspired by a pearl – its timeless sophistication and beautiful form that completes any interior.
LED ring to match your home
Choose your favorite color
Select the color of the LED ring to adapt it to your personal preferences.
Double backlight button
Use two colors of backlighting wherever you want – a different color on the bottom and another on the top to see the exact status of the device.
An overview of energy consumption
Control the amount of energy consumed by the equipment in your home.

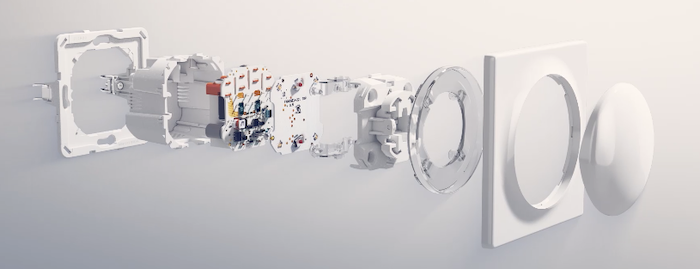

Reliable components and eye-catching details
At FIBARO, unique quality and design always go hand in hand. The Walli line has been designed to improve the comfort and safety of your family for many years.
Pulsations to taste
Configure the Walli switch button to take full advantage of its amazing capabilities.
A single clic to turn on the light, a double clic to turn it off, a triple clic to turn on the “Fun” scene, a pulsation maintained for 60% light intensity.

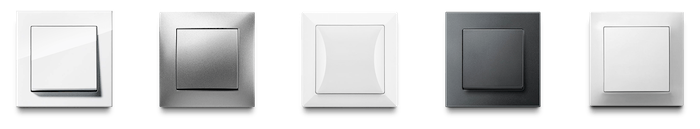

Coincidente with products from other manufacturers
FIBARO Walli is coincidente (with adapters) with front plates from other manufacturers: GIRA – System 55, Legrand – Céliane, Schneider – Odace. If connected to existing sockets and switches, equip them with an integrated smart part and enjoy the features of a smart home without having to replace the front panel.
Manage the whole house with voice
Walli\’s smart switches and sockets are fully coincidente with the famous voice assistants of Google plus Assistant and Amazon Alexa. Easy and comfortable voice management of the entire house.

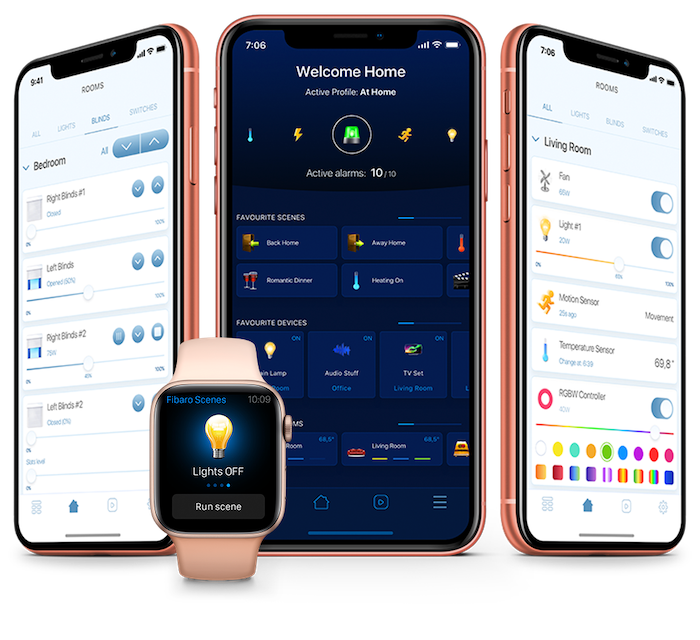

Be with your home wherever you are
The FIBARO Home Center mobile application allows you to manage switches and smart outlets with your teléfono inteligente, tablet or smartwatch. Keep everything under control like a boss.

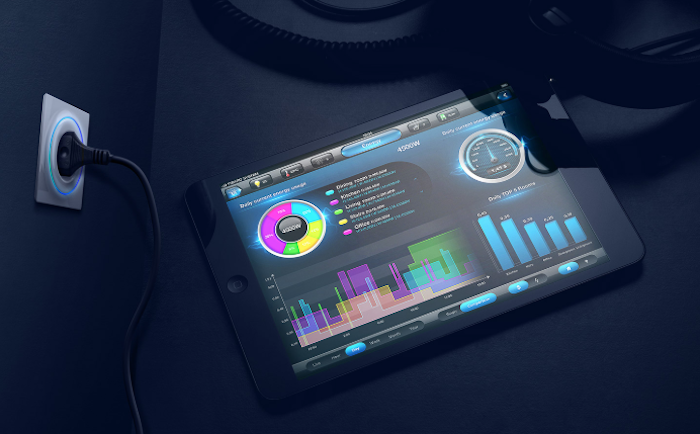

Consumption of controlled energy
Take a look at your home, analyze the energy consumption of your appliances and optimize your expenses as you have always wanted.

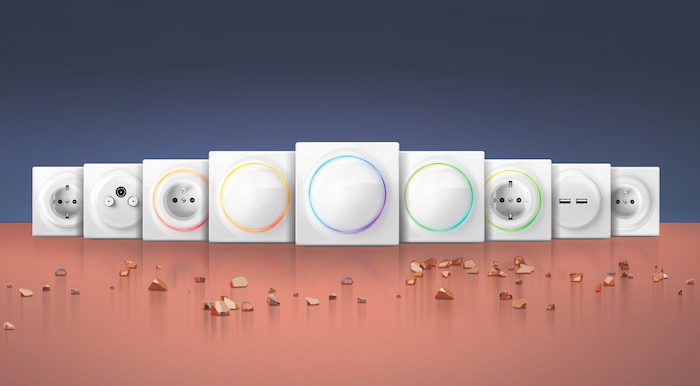

Take a step forward into the future
The Walli series from FIBARO includes classic and non-intelligent switches and sockets to keep the aesthetics of your home constant. Choose them as you wish and enjoy a unique design and features.
FUNCTIONS:
Remote management of lighting.
Control of light through voice commands.
Adaptation of the luminous ring to the preferences of the usuario.
Notifications of electrical equipment failures.
Control of energy consumption.
TECHNICAL SPECIFICATIONS
Power: 110-230V 50 / 60Hz
Rated load current:
Resistive: incandescent and halogen 0.22-1.52A (50-350W)
Capacitive resistance: fluorescent tube lamp (compact / electronic ballast), electronic transformer, LED 0.22-1.3A (30-300VA)
Resistive-inductive: ferromagnetic transformers 0.22-1.3A (30-300VA)
With FIBARO Bypass 2: fluorescent tube or LED lamp (power aspecto> 0.5) 0.022-0.22A (5-50W)
Radio frequency: 868.0-868.6 MHz
Scope: up to 40 m indoors (depending on the terrain and the structure of the building)
Maximum transmission power: + 6dBm
Operating temperature: 0-35 ° C
Ambient humidity: 10-95% RH without condensation
For installation in boxes: Ø = 60mm, depth y también 40mm
Dimensions (H x W x D): 86 x 86 x 51mm
