This magnificent kit packaged by Fibaro, contains everything you need to make your home or office better and smarter. In this indivisible paquete you will find 4 different sensors together with a controlled on / off plug with consumption measurement and a Z-Wave home automation control unit: Fibaro Home Center Lite. ready to use and very easy to install in your home an office without making holes or drills. Are you ready to transform your home or your office? Start your adventure with the Z-Wave home automation with FIBARO and bring safety, savings and comfort to your new life.

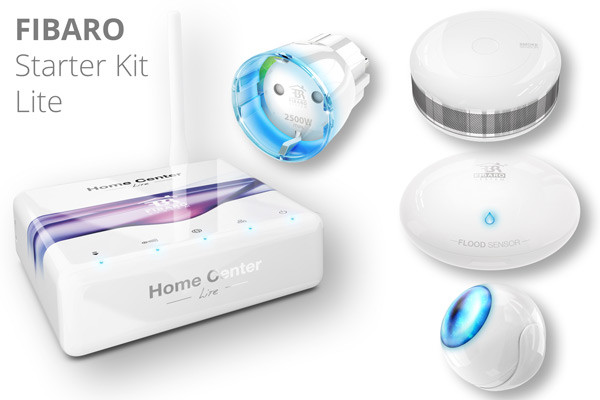

Content of the KIT, synthesis:
Domotic Control Unit Home Center Lite + multisensor + water sensor + smoke sensor + plug on / off + door sensor. Of course, all of Fibaro.
Home Center Lite
The Home Center Lite is the Z-Wave home automation controller in a mini version of Fibaro. This domotic control unit is designed to manage any home automation system for the home or office using the Z-Wave protocol. Fast communication with Fibaro sensors, and other Z-Wave devices, ensures comfort and safety for users.
Motion sensor
The Fibaro motion sensor is a universal multi-sensor, inspired by nature. This device detects: movement, temperature, intensity of the light and also the vibrations through the activation of its sabotage alarm. Its ergonomic design allows a quick and non-invasive installation on any surface.
Wall plug
Intelligent, remotely controllable plug adapter with the ability to measure power consumption. This very functional wall socket adapter cánido be connected to a power outlet, so it gives the possibility to control electrical devices with a convenient maintenance-free plug.
Flood sensor
Highly sensitive and wireless, this Z-Wave flood descubridor detects water at ground level. It is designed to detect the presence of water in basements, cleaning rooms, yachts, etc., and many other residential and commercial applications, providing sound and early warning light in developing floods.
Smoke sensor
The Fibaro Z-Wave battery-powered smoke sensor is a perfectly compact smoke descubridor. Its design offers maximum protection against fire and flames. The device has two alarm indicators – an integrated siren and a visual RGB indicator.
Door / Window Descubridor
Fibaro door / window descubridor is a magnetic sensor for doors and windows, wireless (Z-Wave) and battery operated. To be used with doors, windows, garaje doors, blinds, etc., in scenes of home automation, security, surveillance and security systems.
Note: This starter kit is the version for the Spanish market. Therefore, it contains a schuko type plug and a smoke descubridor according to the European estándar EN14604
CHARACTERISTICS:
“Home automation with Fibaro Starter Kit Z-Wave
“1 controller and 5 accessories
“Remote access vía browser or dispositivo móvil
“Fácil usuario interfaz very easy to use
“Quick and easy installation
“Management of multiple usuario accounts
“Devices of various associations
“Creation of scenarios depending on the climate or other cambiantes defined by the usuario
“Advanced copia de seguridad system
“Copia de seguridad system still registered in the en línea service
“Event history
“Control up to 230 devices
SPECIFICATIONS:
“HOME CENTER LITE (Z-Wave)
Module: Z-Wave controller
* Finish: white plastic box
* únidad central de procesamiento: ARM Cortex A8 720MHz
* RAM memory: 128 MB
* Memory: SLC 128 MB hard drive
* Power supply: AC 100 ~ 240V, 50 ~ 60Hz / DC 12V / 1A (adapter)
* Frequency: 868.42 Mhz
* Range: up to 30 m approx.
* Ethernet ports: 1
* Dimensions: 90 x 90 x 33 mm
“MOVEMENT SENSOR Z-WAVE PLUS (GEN5)
Module: Z-Wave Emitter
* Power: CR123A 3.6VDC
* Recommended height for installation: 2.4m
* Temperature measurement range: -20 ° C to 100 ° C
* Accuracy: 0.5 ° C
* Luminance measurement range: 0 to 32,000 LUX
* Frequency: 868.42 Mhz
* Distance: free field 50m, indoor 30m approx.
* Dimensions: 4.4 cm in diameter
* Operating temperature: 0 to 40 ° C
* Certifications:
* LVD 2006/95 / WE
* EMC 2004/108 / WE
* R & TTE 1999/5 / WE
* RoHS II
“Z-WAVE PLUS WALL PLUG (GEN5)
* Module: Z-Wave receiver / repeater
* Power supply: 110 – 230 V AC ± 10% 50 / 60Hz
* Maximum power: 2.5 kW
* Consumption: 0.8W
* Frequency: 868.42 MHz
* Distance: 50m free field, 30m indoor approx
* Dimensions: 43 x 65 mm (diam x height)
* Operating temperature: 0-40 ° C
* Temperature limit: 105 ° C
* Estándares: EN 55015 et EN 60669-2-1
“Z-WAVE PLUS FLOOD SENSOR (GEN5)
* Module: Z-Wave Emitter
* Power: 12 – 24 VDC
* Battery type: CR123A
* Autonomy of the battery: 2 years
* Consumption with external power: 0.4W
* Maximum output current (ALARM NC, TAMP NC): 25mA
* Maximum voltage supported in output: 40V (AC or DC)
* Frequency: 868.42 MHz
* Distance: 50m free field, 30m indoor approx
* Dimensions: 72 x 28 mm (diam x height)
* Operating temperature: 0-40 ° C (-20 ° C to 70 ° C if externally powered)
* Range of temperature measurement: -20 to 100 ° C
* Accuracy of the measure: 0.5 ° C (in the range of 0 to 40 ° C)
* Estándares: EMC 2004/108 / EC and R & TTE 199/5 / WE
“Z-WAVE PLUS SMOKE SENSOR (GEN5)
* Module: Z-Wave Emitter
* Power supply: Lithium 3V CR123A battery
* Autonomy of the battery: 3 years
* Frequency: 868.42 MHz
* Transmission distance: 50m free field, 30m indoor approx.
* Dimensions: 65 x 28 mm (diam x height)
* Operating temperature: 0-55 ° C
* Operating humidity: 0% – 93%
* Range of temperature measurement: -20 to 100 ° C
* Smoke sensitivity: 1st level – 1.20 +/- 0.5% obs / m; 2nd level – 1.80 +/- 0.5% obs / m; 3rd level- 2.80 +/- 0.5% obs / m
* Sound level: 85 dB à 3m
* Accuracy of the measurement: 0.5 ° C (in a range of 0 to 55 ° C)
* Normes: EMC 2004/108 / EC and R & TTE 199/5 / WE
* Certifications: EN 14604: 2005
“DOOR DETECTOR / WINDOW Z-WAVE PLUS (GEN5)
* Module: Z-Wave Emitter
* White color
* Power: Battery ER14250 (1 / 2AA) 3.6V
* Frequency: 868.42 Mhz
* Transmission distance: 50m free field, 30m indoor approx.
* Dimensions: 76 x 17 x 19 mm
* Operating temperature: 0-40 ° C
